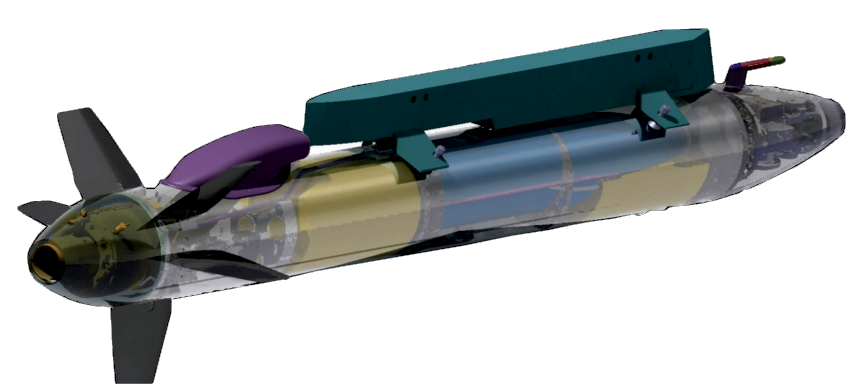

Jet Powered Bomb

Jet Powered Bomb

JPB is an advanced version of Long Range Glide Bomb. JPB is fitted with a jet engine and customised control laws to optimise L/D and T/W ratios to obtain maximum range that is kept limited to 290 km.

Parameters & Specifications

  • Length: ≤ 5m

  • Wing Span: ≤ 3m

  • AUW: 500 kg class

  • Max Release Speed: 0.85 M

  • Carriage Altitude: Up to 12 km

  • Max range and Speed: 290 km, 0.8 M

  • CEP: < 5m

  • Terminal Guidance: EOIR

  • Power Plant: 900N / 1500 N turbojet

  • Warhead: 250 kg HSLD

  • Compatibility: MIL STD 1760

  • Operating Temperature Range: -40°C to +71°C

  • Mid-Course Guidance: Multi constellation GNSS coupled Inertial Navigation System
