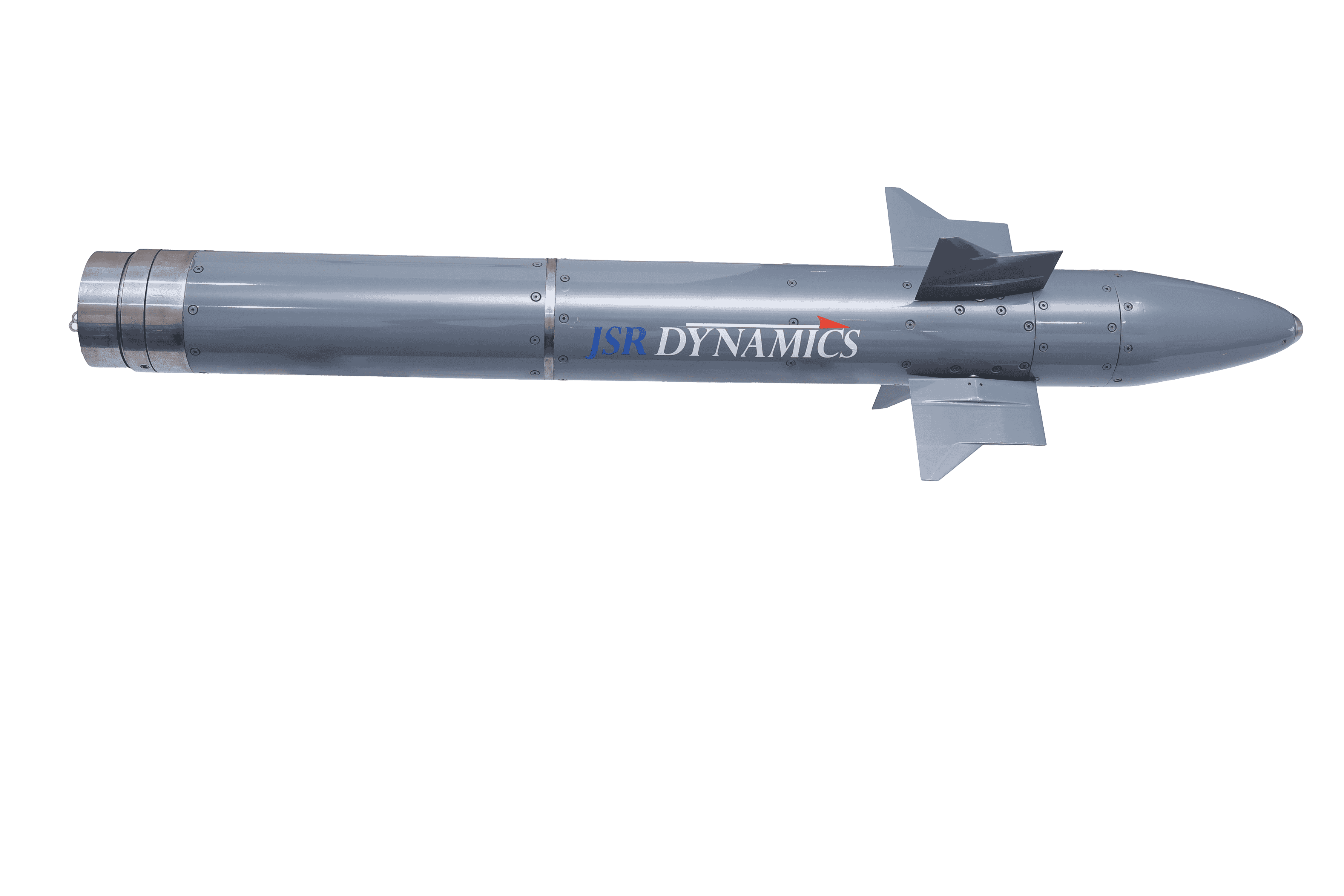

122 MM Guided Rocket

122 MM Guided Rocket

Existing 122 mm rockets are unguided and the dispersion on these rockets are very large which requires multiple rockets for neutralising an intended target. Providing a control and guidance system for the existing rocket can significantly improve the accuracy of single employment of the rocket and thereby reducing the number of the rockets required to neutralise a target.

Parameters & Specifications

  • Caliber: 122 mm

  • Guidance: GPS + Aided INS

  • Warhead: 12 kg

  • Accuracy: < 10 m

  • Range: Increase range by 30%

  • Anti-Overload Capacity: Axial ± 50 g, Transverse Normal ± 15 g

  • Applicable Flight Altitude: < 18 Km

  • Operating Temperature Range: -40 °C to +75 °C

  • Resistance to Aerodynamic Heat: max. 450 °C

Actuator Bandwidth Test
